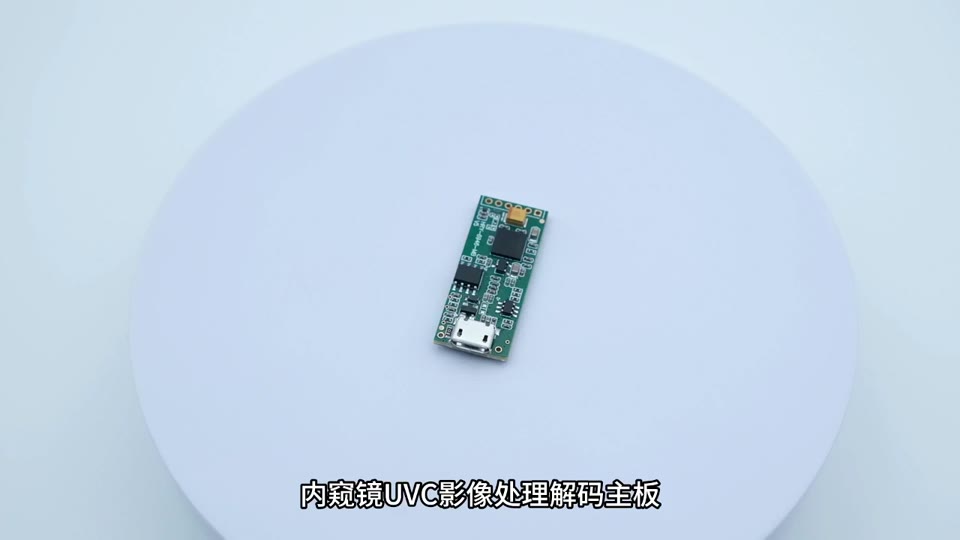

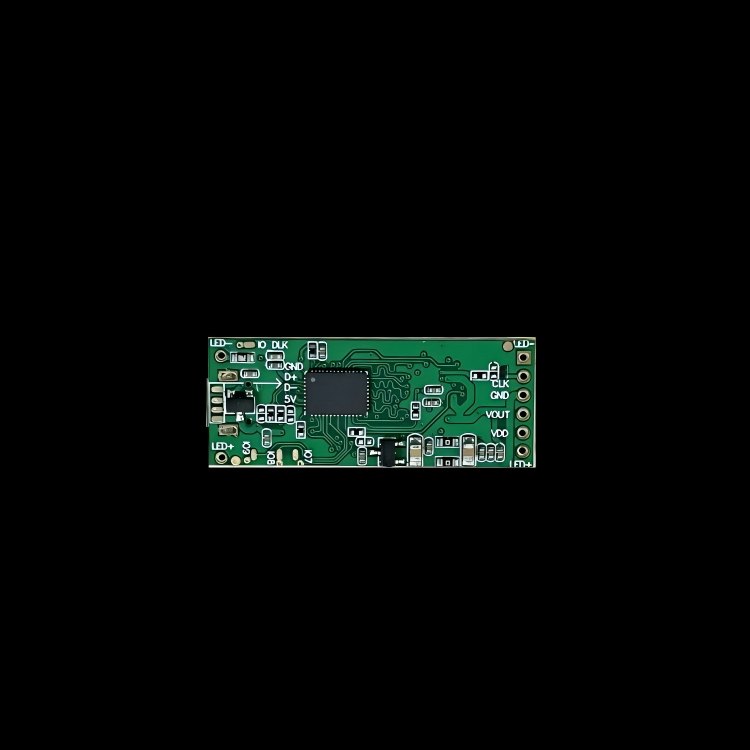

HRY 6946 V01 · UVC 内窥镜影像处理解码板
HRY6946V01是一款高性能微功耗UVC内窥镜影像处理解码主板，是内窥镜ISP影像处理核心部件，内置OV426转码芯片，USB2.0高速接口Micro-B，且为了信号稳定，减少焊接工序，更易于集成在主机主板内部，特增加板对板连接器形态设计，用户只需要设计对插转板即可实现，较小的尺寸为35mm*1
产品参数
| 数据格式 | 原始数据：MJPG/YUV |
| 灰度等级 | 8 Level |
| 相机控制 | 饱和度/对比度/清晰度 |
| 白平衡 | Auto, |
| 曝光方式 | Auto, |
| 工作电压 | DC 5V |
| 工作电流 | ＜60 mA |
| 存储温度 | 0℃ to +60℃ |
| 工作温度 | -20℃—+75℃ |
| 驱动标准 | UVC |
| 接口类型 | USB2.0 with OTG |
| 兼容系统 | WinXP SP2/Vista/Win7/Win8/Win8.1；二次开发 APP 支持 Android/Linux/Windows/Ubuntu/iOS 等系统（提供 SDK/API） |
| 功耗 | ≤60 mA （No Light ） |
| 外形尺寸 | 35 mm × 18mm ±0.2mm |
产品视频
HRY 6946 V01是一款高性能微功耗UVC内窥镜影像处理解码主板，是内窥镜ISP影像处理核心部件，内置OV426转码芯片，USB2.0 高速接口Micro-B，且为了信号稳定，减少焊接工序，更易于集成在主机主板内部，特增加板对板连接器形态设计，用户只需要设计对插转板即可实现，较小的尺寸为35mm*18mm±0.2mm,支持驱动长距离Sensor CVBS信号2-5米输入，经先进的第七代ISP图像算法处理技术，较低的低信号延时，可通过EMC检测及隔离要求，
支持UVC协议与OTG功能，提供与ARM智能主板、内窥镜主机、手机、平板电脑平台操作系统Android、Linux、Windows、Ubuntu、IOS等SDK和API并提供完善的技术支持。
通过GPIO与APP的联动控制，支持一键白平衡、拍照、录影以及手动白平衡、曝光、锐度、亮度等参数调节，可根据用户功能（如调光等）及尺寸需求提供定制化服务，医用级和工业级精微效果调试服务。本产品拥有核心专利技术，采用海瑞洋解码板使您的内窥镜产品不受到出口和侵权的限制，广泛应用医用多科室内窥镜及工业内窥镜等领域。
应用领域
本系列产品为内窥镜ISP影像处理核心部件：尤其适用于支气管内窥镜，耳鼻喉内窥镜、胆道镜、胃镜、泌尿镜、肾盂镜、关节镜、椎间节镜，神经内镜、电子硬管内窥镜、电子软管内窥镜、宫腔镜、工业硬管内窥镜，工业软管内窥镜等多种内窥镜。
HRY 6946 V01 · UVC Endoscope Decoder Board
产品视频
The HRY 6946 V01 is a high-performance, micro-power UVC endoscope image-processing and decoding mainboard. It is a core component for endoscope ISP image processing, with a built-in OV426 transcoding chip and a USB 2.0 high-speed Micro-B interface. In addition, to ensure signal stability, reduce soldering processes, and facilitate integration into the host mainboard, a board-to-board connector form-factor design has been specially added. Users only need to design a mating adapter board to implement it. Its compact size is 35 mm × 15 mm ±0.2 mm. It supports driving long-distance Sensor CVBS signal input over distances of 2–5 meters. With advanced 7th-generation ISP image algorithm processing technology, it delivers low signal latency and can pass EMC testing and isolation requirements.
It supports the UVC protocol and OTG function. It provides SDKs and APIs for ARM smart mainboards, endoscope hosts, mobile phones, tablet platforms, and operating systems such as Android, Linux, Windows, Ubuntu, and iOS, along with comprehensive technical support.
Through linked control between GPIO and the APP, it supports one-touch white balance, photo capture, video recording, and manual adjustment of parameters such as white balance, exposure, sharpness, and brightness. Customized services are available according to user functions (such as dimming) and size requirements, as well as medical-grade and industrial-grade fine image-effect tuning services. This product has core patented technology. Using the HaiRuiYang (HRY) decoder board keeps your endoscope products free from export and infringement restrictions. It is widely used in medical multi-department endoscopes, industrial endoscopes, and other fields.
典型应用领域
This product series is a core component for endoscope ISP image processing. It is especially suitable for bronchoscopes, ENT endoscopes, choledochoscopes, gastroscopes, urological endoscopes, pyeloscopes, arthroscopes, spinal endoscopes, neuroendoscopes, electronic rigid endoscopes, electronic flexible endoscopes, hysteroscopes, industrial rigid endoscopes, industrial flexible endoscopes, and many other types of endoscopes.
