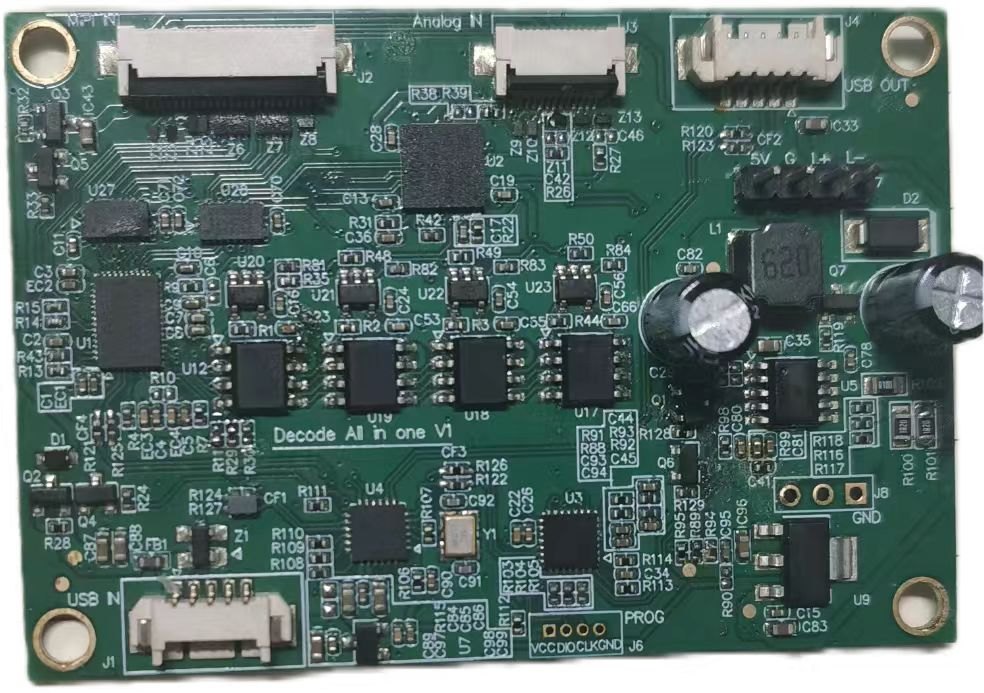

Decode All in one 7-in-1 · UVC 内窥镜影像处理解码板
Allinone是一款高性能微功耗多功能UVC七合一内窥镜影像处理解码主板,它可以预存储7个内窥镜sensor的配置，当插入不同的内窥镜后，主板经ID自识别sensor后，配置相对应的参数，即可出图显示，内窥镜ISP影像处理核心部件，较小的尺寸为70mm*48mm±0.2mm,支持驱动输入长距离Se
产品参数
| 数据格式 | 原始数据：MJPG/YUV |
| 灰度等级 | 8 |
| 相机控制 | 饱和度/对比度/清晰度 |
| 白平衡 | auto |
| 曝光方式 | auto |
| 工作电压 | DC 5V |
| 工作电流 | ＜200 mA |
| 存储温度 | 0℃ to +60℃ |
| 工作温度 | -20℃—+75℃ |
| 驱动标准 | UVC 即插即用（国际标准） |
| 接口类型 | USB2.0 Type C with OTG |
| 兼容系统 | WinXP SP2/Vista/Win7/Win8/Win8.1；二次开发 APP 支持 Android/Linux/Windows/Ubuntu/iOS 等系统（提供 SDK/API） |
| 功耗 | ≤60 mA（模组无灯） |
| LED 补光 | DC 3.3V，限流电阻 47Ω |
| 引脚定义 | Pin1：LED- | Pin2: LED+ | Pin3: CLK | Pin4: GND | Pin5: VDD | Pin6: VOUT |
| 外形尺寸 | 70L x 48W ±0.2mm |
All in one是一款高性能微功耗多功能UVC七合一内窥镜影像处理解码主板,它可以预存储7个内窥镜sensor的配置，当插入不同的内窥镜后，主板经ID自识别sensor后，配置相对应的参数，即可出图显示，内窥镜ISP影像处理核心部件，较小的尺寸为70mm*48mm±0.2mm,支持驱动输入长距离Sensor Mipi信号2-3米个可以支持CVBS信号2-3米输入，经主板上先进的ISP图像算法处理后，采用PFC排线的形式以USB2.0 高速接口输出给主机主板，较低的低信号延时，可通过EMC检测及隔离要求，将这款主板嵌入到内窥镜影像处理器主机中，可以支持多型号，多功能软硬内窥镜。
支持UVC协议与OTG功能，提供与ARM智能主板、内窥镜主机、手机、平板电脑平台操作系统Android、Linux、Windows、Ubuntu、IOS等SDK和API并提供完善的技术支持。
通过GPIO与APP的联动控制，支持一键白平衡、拍照、录影以及手动白平衡、曝光、锐度、亮度等参数调节，可根据用户功能（如调光等）及尺寸需求提供定制化服务，医用级和工业级精微效果调试服务。本产品拥有核心专利技术，采用海瑞洋解码板使您的内窥镜产品不受到出口和侵权的限制，广泛应用医用多科室内窥镜及工业内窥镜等领域。
应用领域
支气管内窥镜，耳鼻喉内窥镜、胆道镜、胃镜、泌尿镜、肾盂镜、关节镜、椎间节镜，电子硬管内窥镜、电子软管内窥镜、宫腔镜、工业硬管内窥镜，工业软管内窥镜等多种内窥镜。
Decode All in one 7-in-1 · UVC Endoscope Decoder Board
All-in-One is a high-performance, micro-power, multi-functional UVC 7-in-1 endoscope image processing and decoding mainboard. It can pre-store configurations for 7 endoscope sensors. When different endoscopes are plugged in, the mainboard automatically identifies the sensor via ID and loads corresponding parameters to render images. As the core ISP image processing component for endoscopes, it features a compact dimension of 70 mm × 48 mm ±0.2 mm. It supports long-distance signal input from sensors: 2–3 meters for MIPI signals and 2–3 meters for CVBS signals. Processed by the advanced onboard ISP image algorithm, image data is transmitted via FPC flexible cable and output to the host mainboard through high-speed USB2.0 interface. It delivers low signal latency and meets EMC test and isolation requirements. Embedding this mainboard into an endoscope image processor host enables compatibility with multiple models and multi-functional rigid & flexible endoscopes.
It supports UVC protocol and OTG function. SDKs and APIs are available for integration with ARM intelligent mainboards, endoscope hosts, mobile phones, tablets and operating systems including Android, Linux, Windows, Ubuntu and iOS, along with comprehensive technical support.
Linked control via GPIO and APP enables one-touch white balance, snapshot and video recording, as well as manual adjustment of parameters such as white balance, exposure, sharpness and brightness. 定制服务 services are offered according to customer functional requirements (e.g., dimming control) and dimensional specifications, including fine image tuning for medical-grade and industrial-grade applications. This product incorporates proprietary patented core technologies. By adopting Haireyang decoding boards, your endoscope products can avoid export restrictions and intellectual property infringement risks. It is widely applied in multi-department medical endoscopes and industrial endoscopes.
典型应用领域
This product series is a core component for endoscope ISP image processing. It is especially suitable for bronchoscopes, ENT endoscopes, choledochoscopes, gastroscopes, urological endoscopes, pyeloscopes, arthroscopes, spinal endoscopes, neuroendoscopes, electronic rigid endoscopes, electronic flexible endoscopes, hysteroscopes, industrial rigid endoscopes, industrial flexible endoscopes, and many other types of endoscopes. 4359244863780020868248637900-83033482700※Application Display：
