HRY-6946-MB-V5 · UVC Endoscope Decoder Board
Latest V5 revision of the OV426 CVBS decoding board with tightened ±0.1 mm dimension tolerance, USB 2.0 Micro-B output.
Key Features
- ✔Data Format: RAW DATA ：MJPG/YUV
- ✔Gray Level: 8 Level
- ✔Camera Control: White balance; Exposure; Sharpness; Brightness; Dimming (GPIO control)
- ✔White Balance: auto, manual supported
Specifications
| Data Format | RAW DATA ：MJPG/YUV |
| Gray Level | 8 Level |
| Camera Control | White balance; Exposure; Sharpness; Brightness; Dimming (GPIO control) |
| White Balance | auto, manual supported |
| Exposure | auto, manual supported |
| Working Voltage | DC 5V |
| Working Current | ＜200 mA |
| Storage Temperature | -20℃-+70℃ 0-90Rh |
| Operating Temperature | -20℃— +70℃ |
| Driver Standard | UVC plug-and-play international standard |
| Interface Type | USB2.0 Micro B with OTG |
| Compatible Systems | WinXP SP2、Vista，Win7.0、Win8.0、Win8.1；Through secondary development of the APP, it can support embedded operating systems such as Android and Linux. |
| Power Consumption | ≤50 mA （模组无灯） |
| LED | DC3.3VCurrent-Limiting Resistor 39Ω |
| Pin定义 | Pin1：LED- | Pin2: CLK | Pin3: GND | Pin4: VOUT | Pin5: VDD | Pin6: LED+ |
| Outline Dimension | 35L x 14W ±0.2mm |
Product Videos产品视频

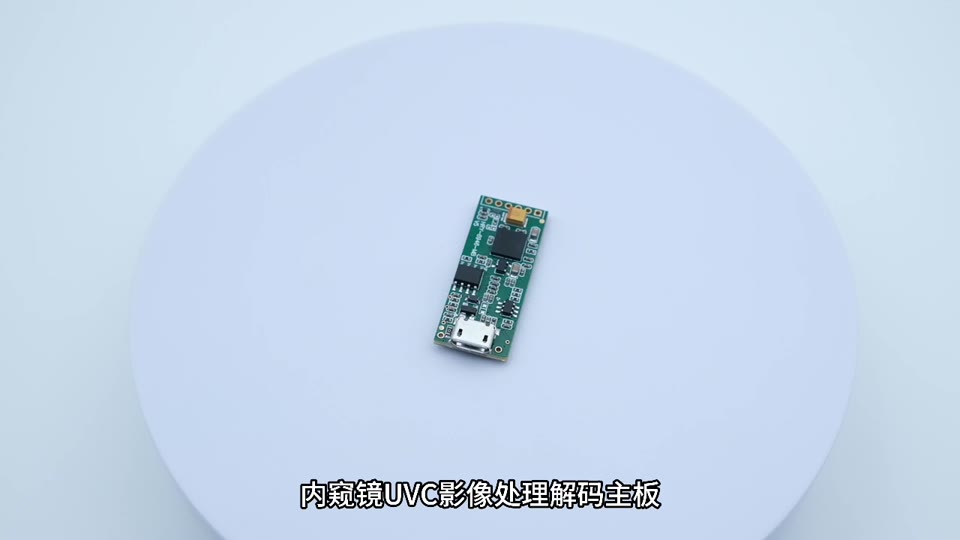

HRY-6946-MB UC is a high-performance, low-power UVC endoscope video processing and decoding mainboard. It is a core component for endoscope ISP image processing. It has a built-in OV426 transcoding chip and a USB 2.0 high-speed Micro B interface. Its compact size is 35 mm × 14 mm ±0.1mm. It supports driving long-distance Sensor CVBS signal input of 2–5 m and processes signals through advanced seventh-generation ISP image algorithm processing technology. It features low signal latency and can pass EMC testing and meet isolation requirements.
It supports the UVC protocol and OTG function. It provides SDKs and APIs for ARM smart mainboards, endoscope hosts, mobile phones, tablets, and platform operating systems such as Android, Linux, Windows, Ubuntu, and iOS, along with comprehensive technical support.
Through GPIO-linked control with the app, it supports one-touch white balance, photo capture, and video recording, as well as manual adjustment of parameters such as white balance, exposure, sharpness, and brightness. Customized services can be provided according to user functions (such as dimming) and size requirements, as well as medical-grade and industrial-grade fine image-effect tuning services. This product has core patented technology. The use of the Hairuiyang decoding board keeps your endoscope products free from export and infringement restrictions. It is widely used in medical multi-department endoscopes, industrial endoscopes, and other fields.
Typical Applications
This product series is a core component for endoscope ISP image processing. It is especially suitable for bronchoscopes, ENT endoscopes, choledochoscopes, gastroscopes, urological endoscopes, pyeloscopes, arthroscopes, spinal endoscopes, neuroendoscopes, electronic rigid endoscopes, electronic flexible endoscopes, hysteroscopes, industrial rigid endoscopes, industrial flexible endoscopes, and many other types of endoscopes.
